Front Hub Unit Bearing: Installation

Install the front hub unit bearing.
CAUTION:
- Always use a new flange bolt.
- Be careful not to damage the front hub unit bearing.
- Do not get closer the tool which charged magnetism to the front hub unit bearing.
Tightening torque:

126 N.m (12.8 kgf-m, 92.9 ft-lb)
Install the front disc rotor. Ref. to BRAKE>FRONT DISC ROTOR>INSTALLATION .
While depressing the brake pedal, install the axle nut.
CAUTION: Be sure to use a new axle nut.

Tightening torque:

220 N.m (22.4 kgf-m, 162.3 ft-lb)

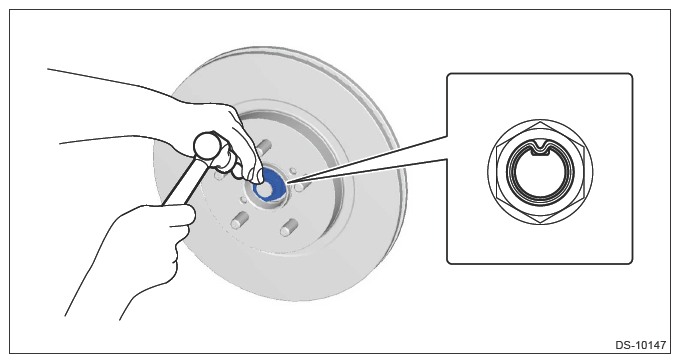

Crimp the axle nut.

Courtesy of SUBARU OF AMERICA, INC.
Install the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>INSTALLATION .
