Front Hub Unit Bearing: Assembly

  1. Set the front hub unit bearing and hub bolt to the ST.
    CAUTION: Always use a new hub bolt.

    Preparation tool:

    ST: HUB STAND (28099PA080)

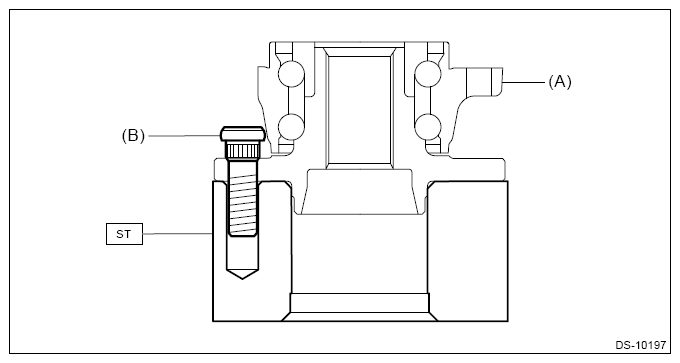

  2. Using a press, press the hub bolt (B) until its seating surface contacts the hub unit bearing (A).
    NOTE: Use the 12 mm (0.5 in) dia. holes of ST to prevent bolts from tilting.
G13949979Courtesy of SUBARU OF AMERICA, INC.
