Parking Brake Switch: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: Release the shift lock and shift the select lever to the "N" position. Ref. to CONTROL SYSTEMS>SELECT LEVER>REMOVAL .
  2. Remove the cover assembly front. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .

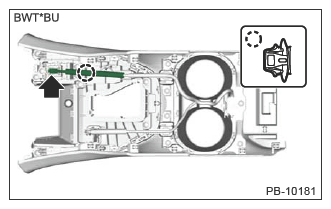

  3. Remove the cord assembly console from the switch assembly EPB.
    1. Disconnect the harness connector.
    2. Release the clamp.
    G13950162Courtesy of SUBARU OF AMERICA, INC.

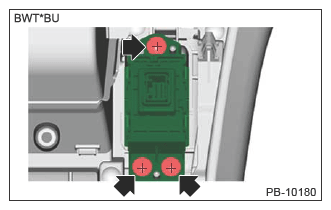

  4. Remove the screws to remove the switch assembly EPB.
    G13950163Courtesy of SUBARU OF AMERICA, INC.
