Electronic Parking Brake Harness

• Sedan model

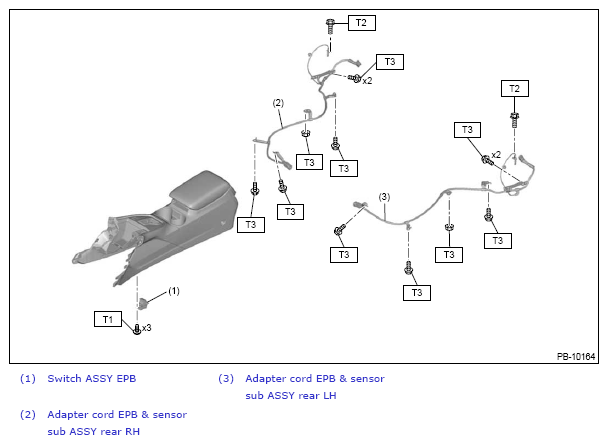

Fig 1: Electronic Parking Brake Harness Components (Sedan Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf.m, ft.lb)

T1: 3.2 (0.3, 2.4)

T2: 7.5 (0.8, 5.5)

T2: 18 (1.8, 13.3)

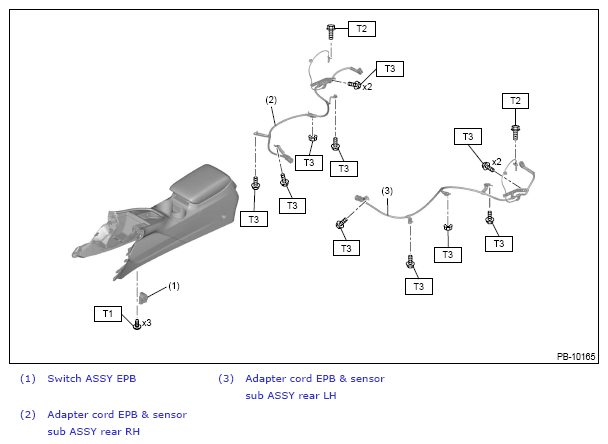

Fig 2: Electronic Parking Brake Harness Components (Outback Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf.m, ft.lb)

T1: 3.2 (0.3, 2.4)

T2: 7.5 (0.8, 5.5)

T2: 18 (1.8, 13.3)
