Rear Brake Pad: Removal

  1. Release the parking brake.
  2. Using the Subaru Select Monitor, perform the brake maintenance mode. Ref. to PARKING BRAKE>PARKING BRAKE SYSTEM>OPERATION>BRAKE MAINTENANCE MODE .
  3. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  4. Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  5. Remove the pad COMPL.

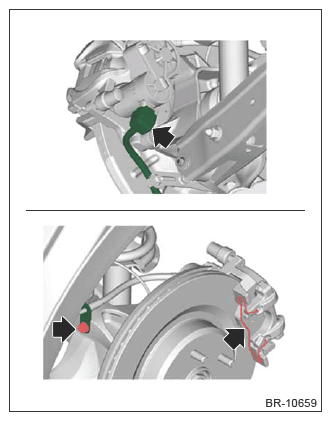

    1. Disconnect the connector.
    2. Remove the pad clip and the brake hose bracket.
      G13950080Courtesy of SUBARU OF AMERICA, INC.

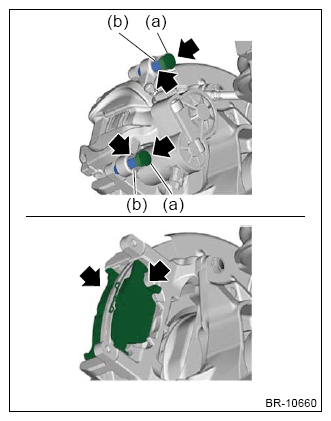

    3. Remove the cap (a).
    4. Using a hexagon wrench, remove the guide pin rear brake (b) and remove the caliper body.
    5. Remove the pad COMPL.
G13950081Courtesy of SUBARU OF AMERICA, INC.
