Rear Brake Pad: Inspection
- Check the pad COMPL thickness.NOTE:
- Always replace the pad COMPL of both wheels and both sides as a set.
- Replace pad clips if they are twisted or worn.
- Replace the pad COMPL if there is oil or grease on it.
- Pad wear indicators are installed on the pad COMPL inner, and a squeaking sound is heard if the brake pad is worn to the limit.

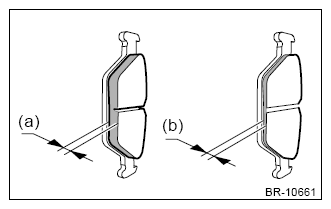

Value in a brand-new state (a) Wear limit (b) Brake pad thickness 9 mm (0.354 in) 1.5 mm (0.059 in) - If the wear limit is exceeded in the inspection, replace the pad COMPL.
