Master Cylinder: Disassembly

  1. Remove the oil reservoir COMPL.
    CAUTION: Be careful not to tighten a vise excessively.

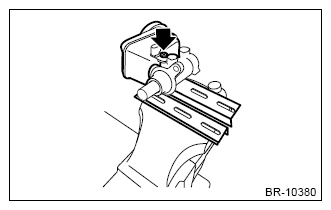

    1. Place the master cylinder assembly between aluminum plates and fix it on a vise.
    2. Turn and pull off the oil reservoir screw using a driver to remove the oil reservoir COMPL.
    G13950103Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the seal reservoir from the master cylinder assembly.
