Master Cylinder

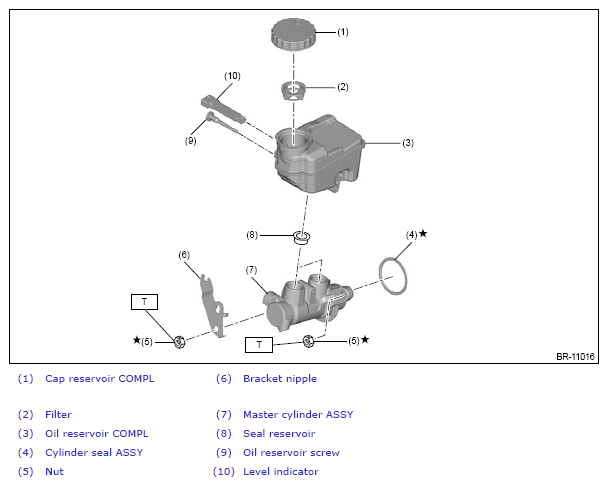

Fig 1: Master Cylinder Components

G13950049

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N m (kgf-m, ft-lb)

T: 25 (2.5, 18.4)
