Front Brake Pipes And Hoses

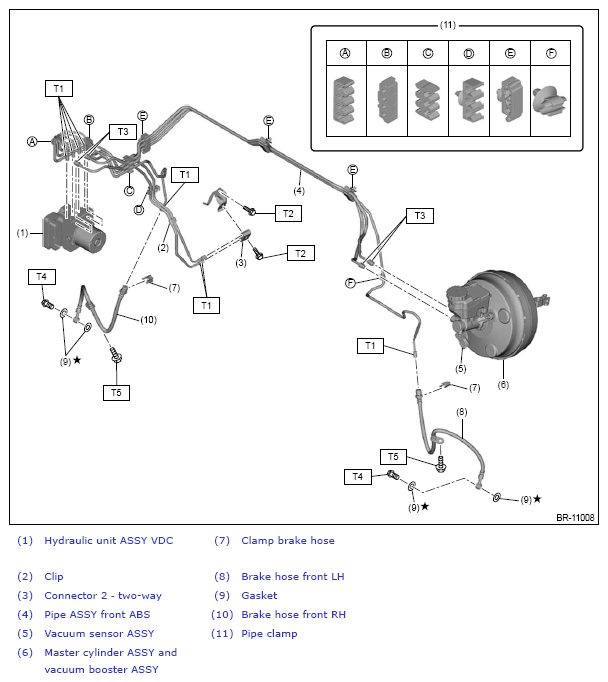

Fig 1: Front Brake Pipes And Hoses Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N m (kgf-m, ft-lb)

T1: 15 (1.5, 11.1)

T2: 18 (1.8, 13.3)

T3: 19 (1.9, 14.0)

T4: 26 (2.7, 19.2)

T5: 33 (3.4, 24.3)
