General Description
>>
Components With Torque Specifications
>>
Brake Pedal
Brake Pedal

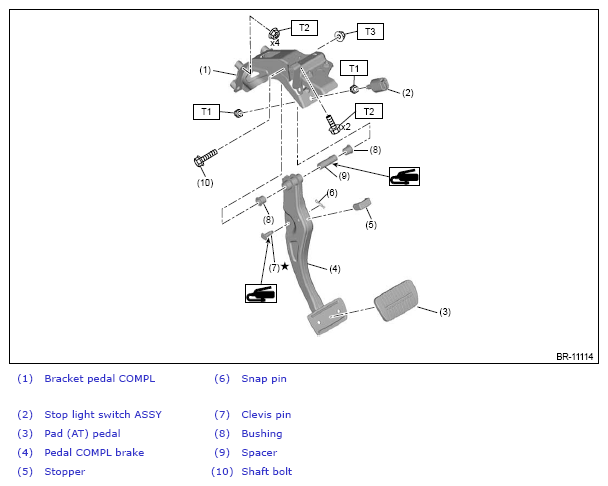

Fig 1: Brake Pedal Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N m (kgf-m, ft-lb)
T1: 8 (0.8, 5.9)
T2: 18 (1.8, 13.3)
T3: 30 (3.1, 22.1)
Courtesy of SUBARU OF AMERICA, INC.
