Front Brake Pad: Removal

  1. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  2. Remove the pad disc brake front.

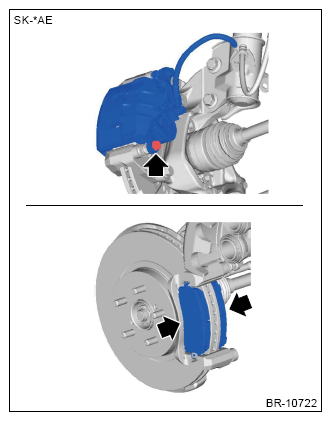

    1. Remove the caliper bolt on the lower side.
    2. Raise the caliper body and remove the pad disc brake front.
    NOTE: Do not disconnect the brake hose from the caliper body.
G13225367Courtesy of SUBARU OF AMERICA, INC.
