Front Brake Pipe

CAUTION:
  • Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  • When removing the brake pipe, do not bend.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  3. Remove the support crossmember rear RH. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .
  4. Remove the vacuum booster assembly. Ref. to BRAKE>BRAKE BOOSTER>REMOVAL .
  5. Remove the pipe assembly front ABS.

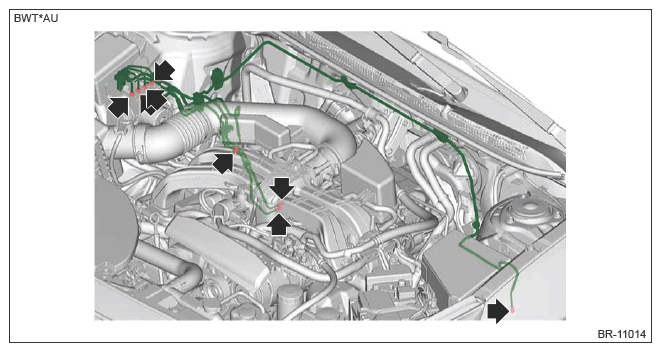

    1. Separate pipe assembly front ABS using a flare nut wrench.
      G13950124Courtesy of SUBARU OF AMERICA, INC.

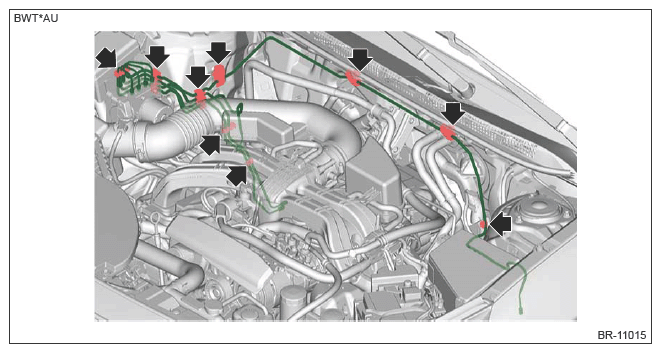

    2. Remove the pipe assembly front ABS from the clamp and clip.
    G13950125Courtesy of SUBARU OF AMERICA, INC.
