Brake Pedal: Inspection

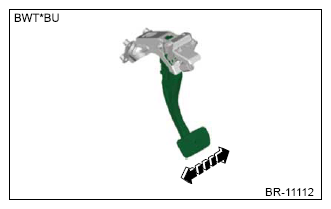

Move the pad (AT) pedal in a horizontal direction with a force of approx. 10 N (1 kgf, 2 Ibf), and check that the brake pedal deflection is in the range of specifications.
CAUTION: If excessive deflection is noted, replace the bushing with a new part.

Deflection of brake pedal:

Limit: 5 mm (0.197 in) or less

Courtesy of SUBARU OF AMERICA, INC.

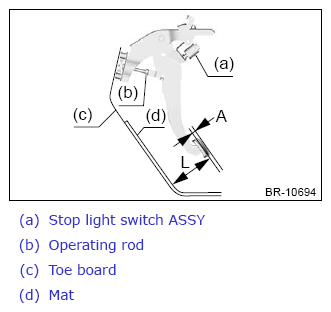

Check the pad (AT) pedal position.
Brake pedal height L:

139 - 149 mm (5.47 - 5.87 in)

Brake pedal free play A:

0. 5 - 2.7 mm (0.02 - 0.11 in) [When pulling the brake pedal upward with a force of less than 10 N (1 kgf, 2 lbf)]

Courtesy of SUBARU OF AMERICA, INC.
If it is not within the specification, loosen the lock nuts of operating rod, and rotate the rod to adjust the pedal height L within the specification.
Tighten the lock nut.
NOTE: Check the brake pedal height. When adjusting, also adjust the stop light switch assembly.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
