Brake Pedal: Disassembly

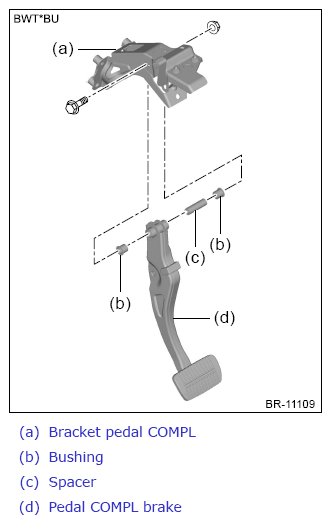

  1. Remove the pedal COMPL brake from the bracket pedal COMPL.
    G13950131Courtesy of SUBARU OF AMERICA, INC.

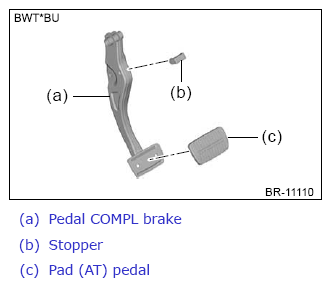

  2. Remove the stopper and pad (AT) pedal from the pedal COMPL brake.
    G13950132Courtesy of SUBARU OF AMERICA, INC.
