Brake Pedal: Assembly

Install the stopper and pad (AT) pedal to the pedal COMPL brake.

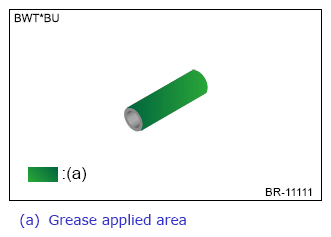

Apply grease to the spacer.
Preparation items:

Grease: NIPPON GREASE NIGTIGHT LTS No. 2 grease or equivalent

Courtesy of SUBARU OF AMERICA, INC.
Install the pedal COMPL brake to the bracket pedal COMPL.
Tightening torque:

30 N.m (3.1 kgf-m, 22.1 ft-lb)
