Rear Door Glass: Removal

  1. Operate the switch power window to move the glass assembly rear door to the lowest position.
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the trim panel rear door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>REAR DOOR .
  4. Remove the rear sealing cover. Ref. to EXTERIOR BODY PANELS>SEALING COVER>REMOVAL>REAR SEALING COVER .
  5. Remove the glass assembly rear door.
    CAUTION: Do not damage the sash or the sash molding while removing.

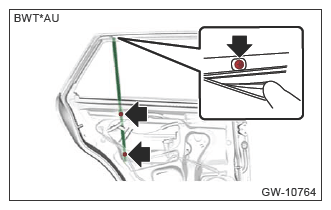

    1. Remove the sash assembly rear door partition, and remove the running channel rear door from the glass assembly rear door.
      G13953352Courtesy of SUBARU OF AMERICA, INC.

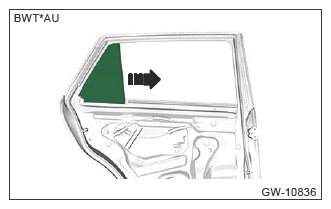

    2. Remove the glass rear door partition.
      G13953353Courtesy of SUBARU OF AMERICA, INC.

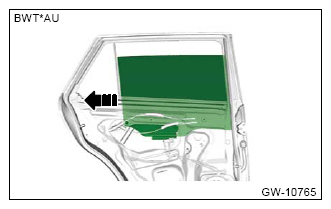

    3. Slide the glass assembly rear door to remove from the regulator and motor assembly rear.
G13953354Courtesy of SUBARU OF AMERICA, INC.
