Sunroof Switch: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover assembly stereo camera. Ref. to EYESIGHT>STEREO CAMERA>REMOVAL .

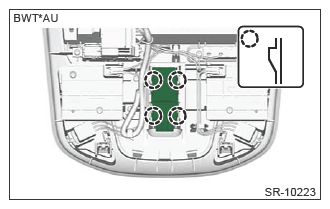

  3. Release the claws, and then remove the sunroof switch.
    CAUTION: Be careful not to damage the engaging portion.
    G13625813Courtesy of SUBARU OF AMERICA, INC.
