Sunroof Motor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover assembly stereo camera. Ref. to EYESIGHT>STEREO CAMERA>REMOVAL .

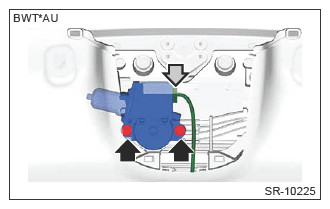

  3. Remove the motor assembly.
    1. Disconnect the harness connector.
    2. Remove the screws to remove motor assembly.
    CAUTION: When removing the sunroof motor, secure the cable assembly so that it does not move.
    G13625816Courtesy of SUBARU OF AMERICA, INC.
