Outback Model

  1. Release the clips and claws, then remove the bumper guard rear.
    G13953634Courtesy of SUBARU OF AMERICA, INC.

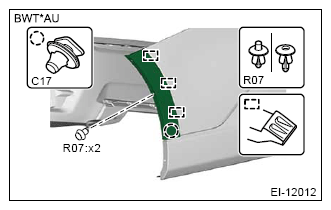

  2. Release the clips and claws, then remove the arch garnish rear.
G13953635Courtesy of SUBARU OF AMERICA, INC.
