Front Bumper: Disassembly

  1. Remove the front view camera assembly. (Model with front view monitor camera) Ref. to ENTERTAINMENT & MONITORING>CAMERA>REMOVAL>FRONT .

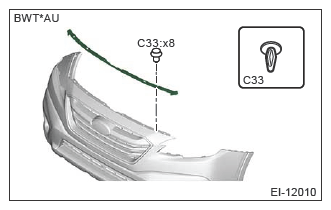

  2. Remove the clips, and remove the sealing bumper front.
    G13953607Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the front grille assembly.
    1. Remove the screws on the back side.
    2. Release the claws, and remove the front grille assembly.

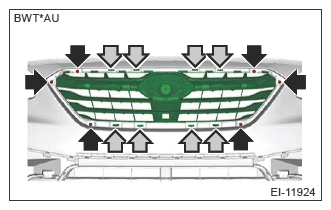

      • Sedan model
        G13953608Courtesy of SUBARU OF AMERICA, INC.

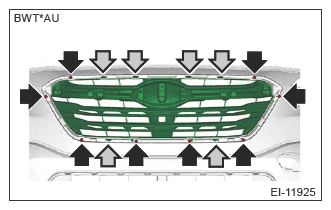

      • OUTBACK model
    G13953609Courtesy of SUBARU OF AMERICA, INC.

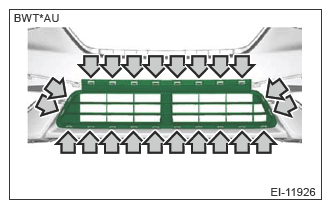

  4. Release the claws, and then remove the cover intake front.
    • Sedan model
    G13953610Courtesy of SUBARU OF AMERICA, INC.

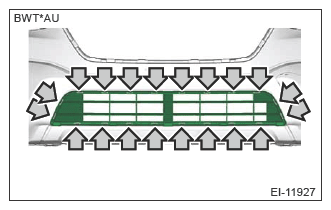

    • OUTBACK model
    G13953611Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the fog light assembly front. Ref. to LIGHTING SYSTEM>FRONT FOG LIGHT ASSEMBLY>REMOVAL .

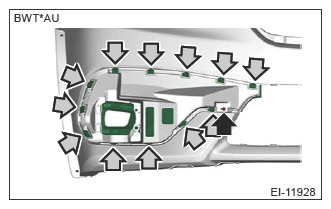

  6. Remove the screws and release the claws, and then remove the cover fog front. (Sedan model)
    G13953612Courtesy of SUBARU OF AMERICA, INC.

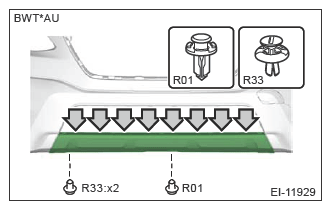

  7. Release the clips and claws, then remove the bumper guard front. (OUTBACK model)
    G13953613Courtesy of SUBARU OF AMERICA, INC.

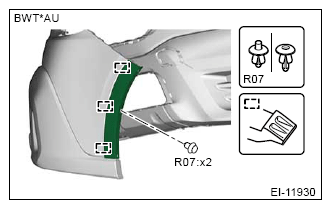

  8. Release the clips and claws, then remove the arch garnish front. (OUTBACK model)
G13953614Courtesy of SUBARU OF AMERICA, INC.
