Power Rear Gate Auto Closer: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel assembly rear gate LWR. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE TRIM>REMOVAL .

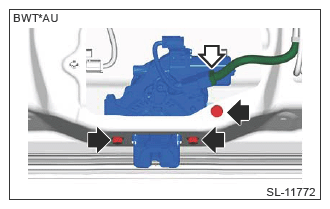

  3. Remove the power rear gate auto closer.
    1. Disconnect the connector.
    2. Remove the bolts, and then remove the power rear gate auto closer.
    G13626188Courtesy of SUBARU OF AMERICA, INC.
