Power Rear Gate System (Diagnostics)
>>
Electrical Component Location
>>
Location
Power Rear Gate System (Diagnostics): Electrical Component Location: Location

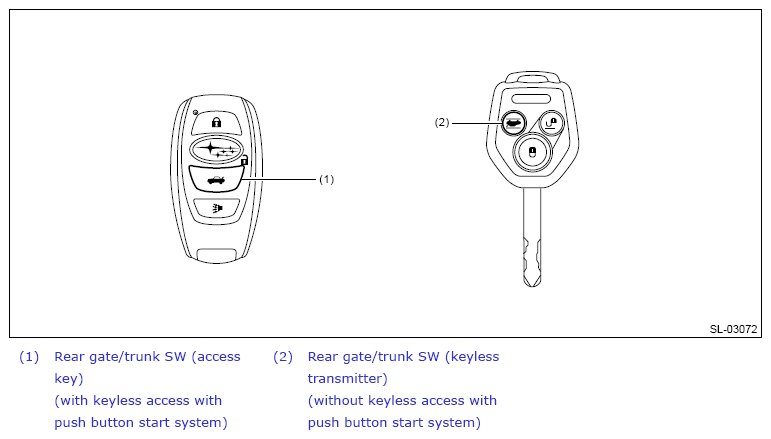

Courtesy of SUBARU OF AMERICA, INC.

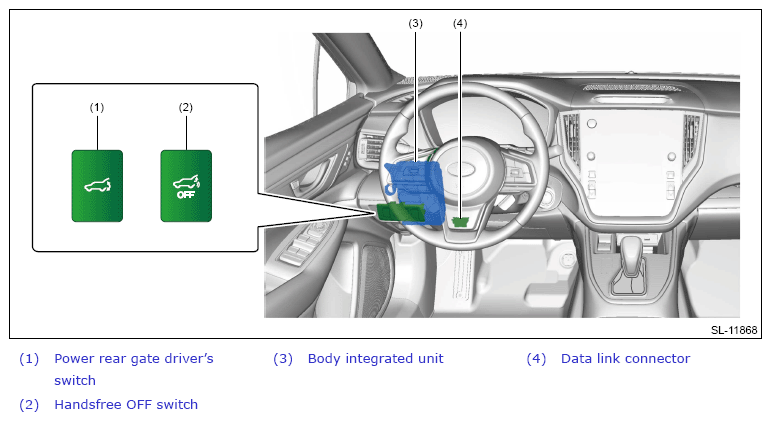

Courtesy of SUBARU OF AMERICA, INC.

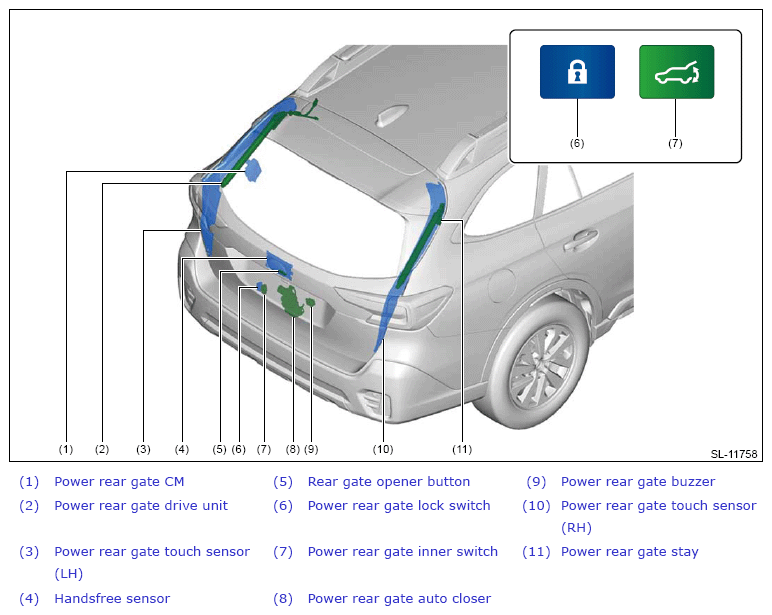

Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
