Door Inner Remote: Removal: Rear

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel rear door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>REAR DOOR .
  3. Remove the remote assembly door.
  1. Remove the screws.
  2. Release the claws and guides, and remove the remote assembly door.

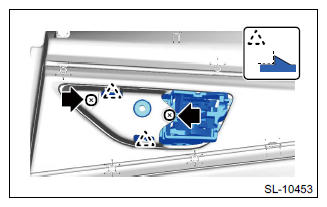

G11246293Courtesy of SUBARU OF AMERICA, INC.
