Wiper Blade: Disassembly: Front

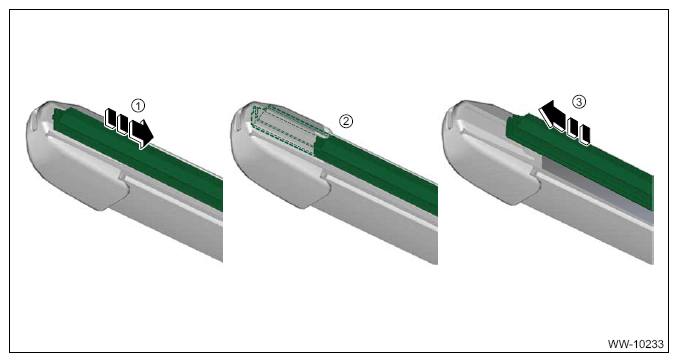

  1. Hold the rubber assembly windshield wiper, and pull it in the arrow direction to the slit position of the blade assembly windshield.
  2. Pull out the rubber assembly windshield wiper from the slit of the blade assembly windshield as shown in.
G13952026Courtesy of SUBARU OF AMERICA, INC.
NOTE: Shorten the entire rubber assembly windshield wiper in the arrow direction at three or four places.
G13952027Courtesy of SUBARU OF AMERICA, INC.
