Trunk Room Light: Removal

NOTE: Do not remove the trunk room light if removing the bulb only.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

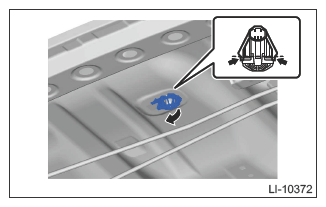

  2. Remove the light assembly trunk room.
    1. Release the claws.
    2. Disconnect the connector and remove the light assembly trunk room.
    G13951982Courtesy of SUBARU OF AMERICA, INC.

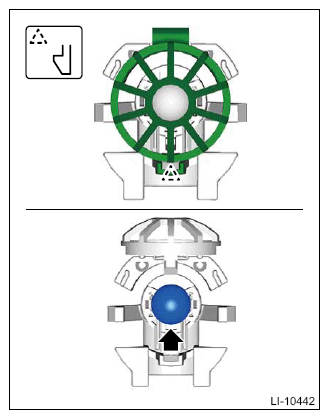

  3. Release the claws to open the bulb cover, then remove the bulb.
    CAUTION: Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
    NOTE: When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.
G13951983Courtesy of SUBARU OF AMERICA, INC.
