Room Light: Removal

NOTE: Do not remove the light assembly roof when removing the bulb only.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the light assembly roof.
    1. Remove the clips, and then remove the hook.
      G13951979Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the light assembly roof.

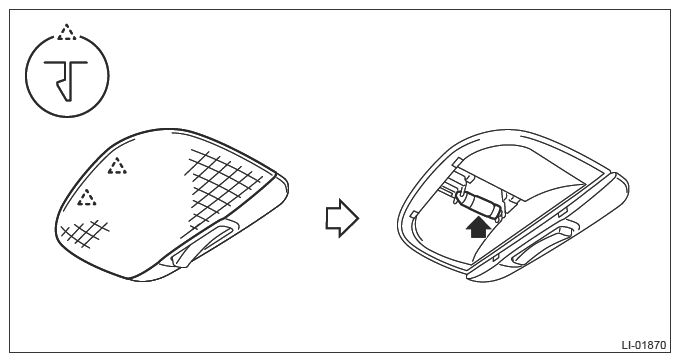

  3. Release the claws and remove the lens and room light bulb.
    CAUTION: Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
    NOTE: When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.
G13951980Courtesy of SUBARU OF AMERICA, INC.
