Home >> Subaru >> 2021 >> Outback Base >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Lighting System >> License Plate Light >> Removal >> Sedan Model

Sedan Model

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the license plate light.

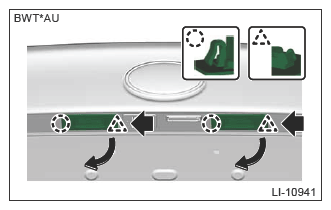

    1. Release the claws in the arrow direction, and pull out the license plate light.
      NOTE: If the removal is difficult, remove the trim panel trunk lid and access from inside the vehicle.
      G13951968Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector, and remove the license plate light.
