Door Step Light: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the light assembly door step.
    CAUTION: Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
    NOTE: When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.

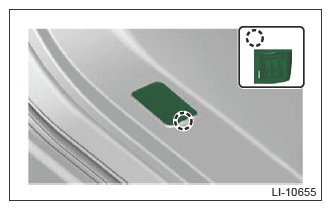

    1. Release the claws, and remove the light assembly door step.
      G13951993Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector.
    3. Remove the light assembly door step and the bulb.
G13951994Courtesy of SUBARU OF AMERICA, INC.
