Sedan Model

CAUTION:
  • Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
  • Do not leave the finisher light assembly without the bulb for a long time. Dust, moisture, etc. entering the light may affect its performance.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel trunk lid. Ref. to EXTERIOR/INTERIOR TRIM>TRUNK ROOM TRIM>REMOVAL .
  3. Remove the bulb socket.
    1. Disconnect the connector.

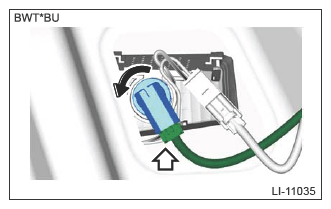

    2. Rotate in the direction of arrow shown in the figure to remove the bulb socket.
      NOTE: The illustration shows the model with tail light. For the model without tail light, perform the procedure by referring to the illustration below.
    G13951965Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the back-up light bulb.
