Rear Speaker: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel rear door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>REAR DOOR .

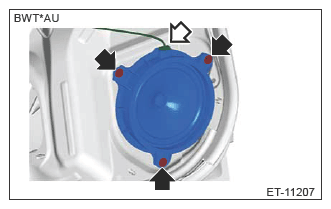

  3. Remove the speaker assembly rear.
    1. Disconnect the connector.
    2. Remove the screws and remove the speaker assembly rear.
      G13952083Courtesy of SUBARU OF AMERICA, INC.
