Front Speaker: Removal: Tweeter

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel assembly A pillar. Ref. to EXTERIOR/INTERIOR TRIM>UPPER INNER TRIM>REMOVAL>A PILLAR TRIM .
  3. Release the clips and hooks, then detach the grille speaker side.
    G13952078Courtesy of SUBARU OF AMERICA, INC.

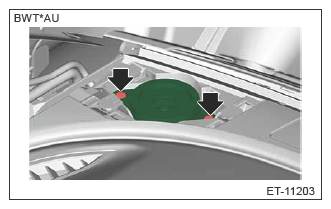

  4. Remove the speaker assembly tweeter.
    1. Remove the screws.
      G13952079Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the speaker assembly tweeter.
