Front Speaker: Removal: Center

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the driver monitoring unit assembly. Ref. to INSTRUMENTATION/DRIVER INFO>DRIVER MONITORING UNIT>REMOVAL .
    NOTE: For the model without driver monitoring system, remove the cover center UPR in the same procedure as for the driver monitoring unit assembly.

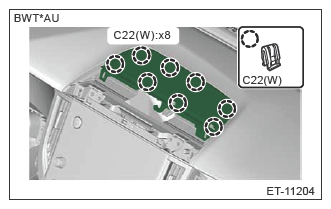

  3. Release the clips, then detach the grille speaker center.
    G13952080Courtesy of SUBARU OF AMERICA, INC.

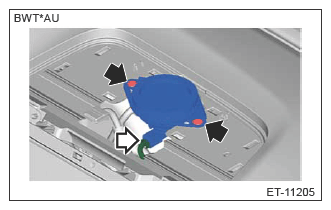

  4. Remove the speaker assembly center.
    1. Disconnect the connector.
    2. Remove the screws and remove the speaker assembly center.
      G13952081Courtesy of SUBARU OF AMERICA, INC.
