LAN System

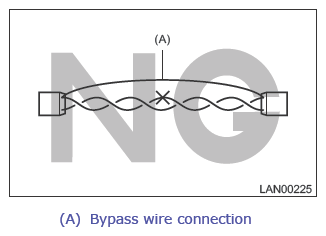

- Bus line of LAN system is twisted pair line. Be careful not to by-pass or partly unbind the twisted pair line.
- Do not make clearance between bus lines (CAN High, CAN Low).
- Difference of bus line length should be within 10 cm (3.94 in).
- Fray near the connector should be within 8 cm (3.14 in).
- If the characteristics of the twisted pair line are changed, it may extremely weaken against noise.

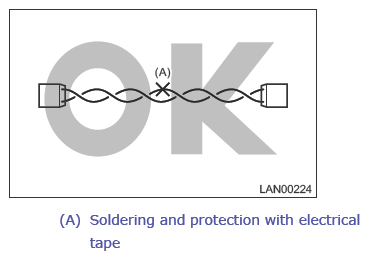

- When repairing the harness, connect the wires using soldering and protect it with electrical tape etc.
