Keyless Access With Push Button Start System: Wiring Diagram

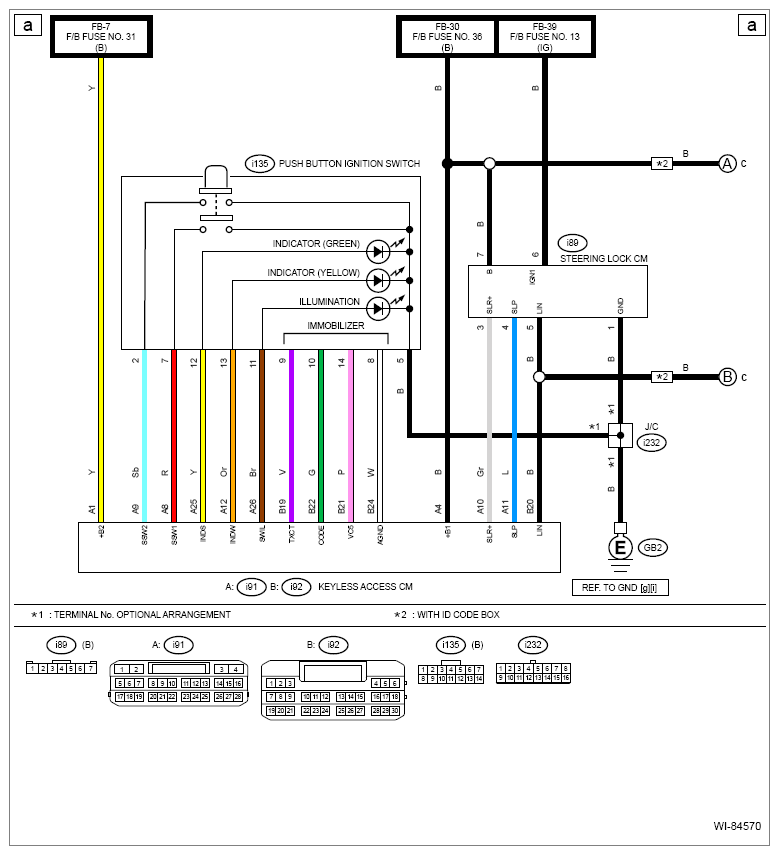

G13954268

Courtesy of SUBARU OF AMERICA, INC.

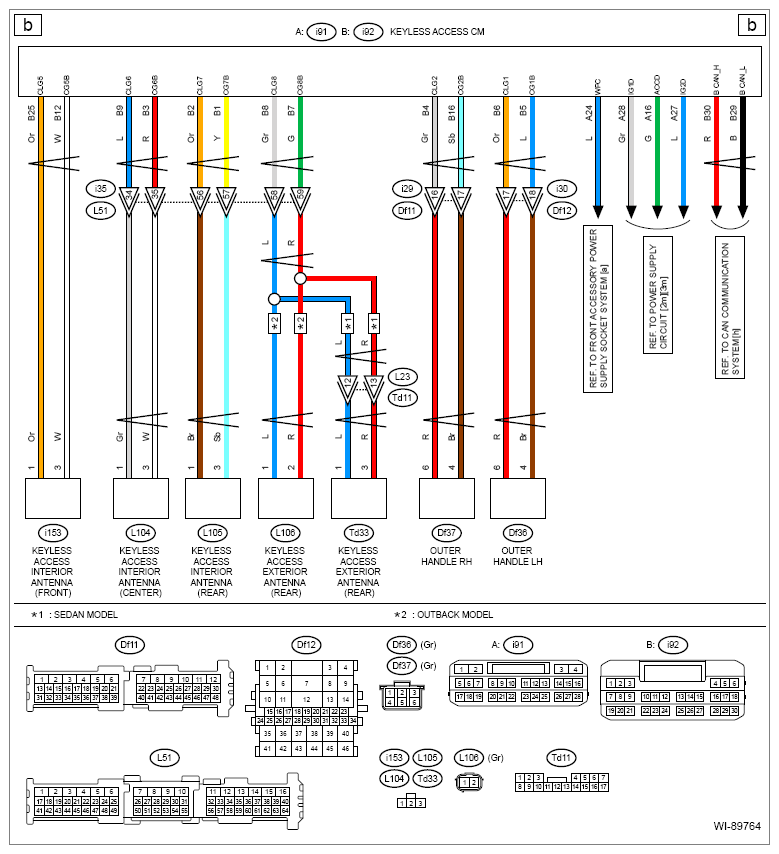

G13954269

Courtesy of SUBARU OF AMERICA, INC.

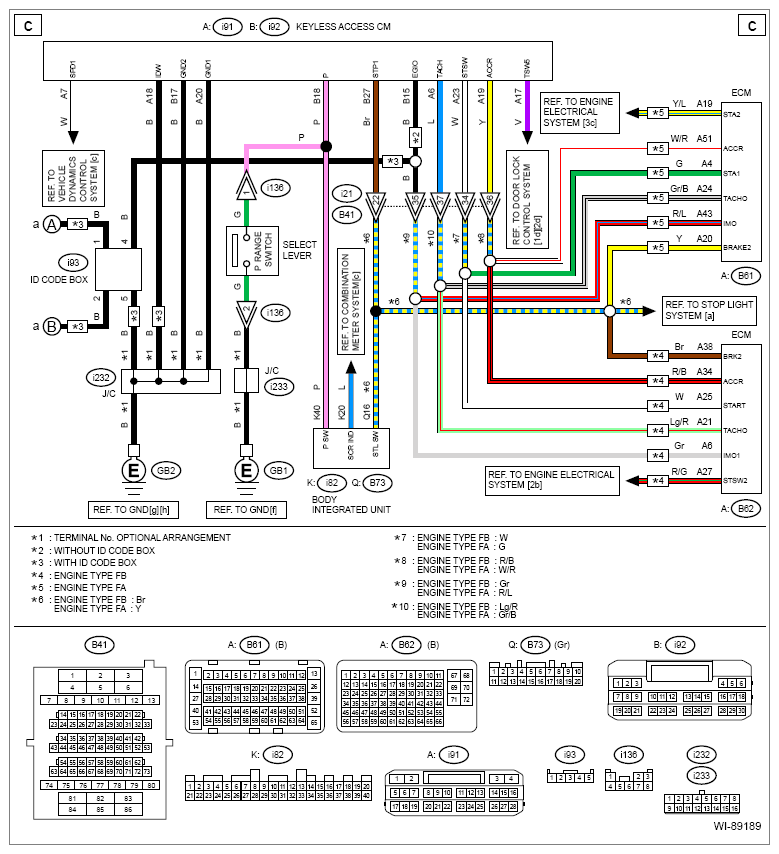

G13954270

Courtesy of SUBARU OF AMERICA, INC.
