Seat Position Memory Control Module (With Seat Position Memory)

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Prior to starting work, check the following precautions. Ref. to SEATS>GENERAL DESCRIPTION>CAUTION .
  2. Raise the seat cushion by operating the switch.
  3. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  4. Remove the front seat (driver's seat). Ref. to SEATS>FRONT SEAT>REMOVAL .
  5. Remove the seat position memory control module.

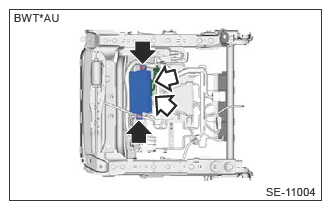

    1. Remove the cover seat position memory control module.
    2. Disconnect the connector.
    3. Remove the nuts, and the seat position memory control module.
    G13952325Courtesy of SUBARU OF AMERICA, INC.
