Sedan Model

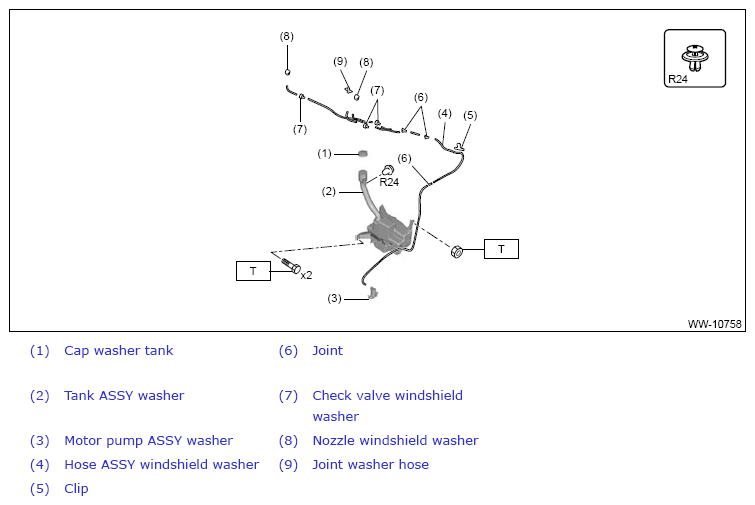

Fig 1: Window Washer Components (Sedan Model)

G13951999

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6 (0.6, 4.4)
