Pitching Stopper

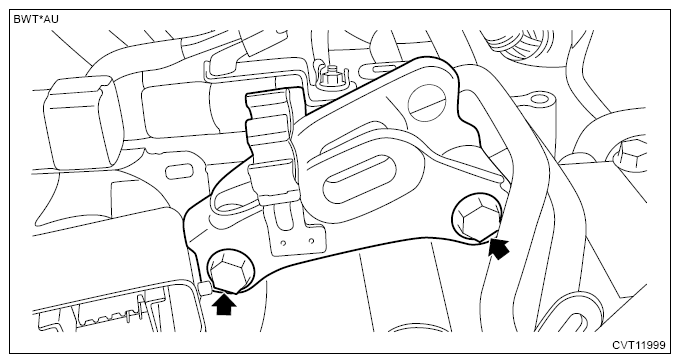

Install the pitching stopper bracket.
Tightening torque:

41 N.m (4.2 kgf-m, 30.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

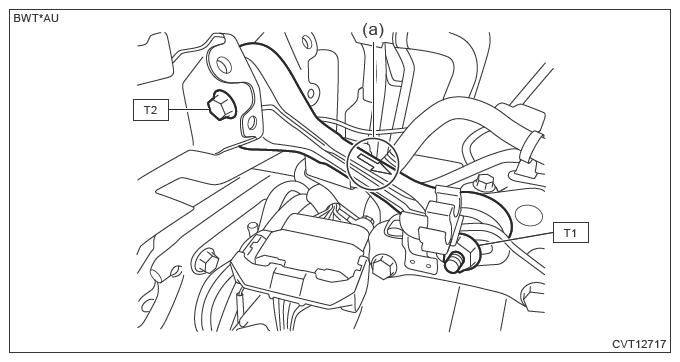

Install the pitching stopper.
NOTE: Install with the front mark (a) facing towards the front of the vehicle.

Tightening torque:

T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

Fig 1: Pitching Stopper Bracket Bolt And Nut (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
Connect the ground cord.
Tightening torque:

32.3 N.m (3.3 kgf-m, 23.8 ft-lb)
Install the air breather hose to the clip.
Install the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>INSTALLATION .
