Pitching Stopper

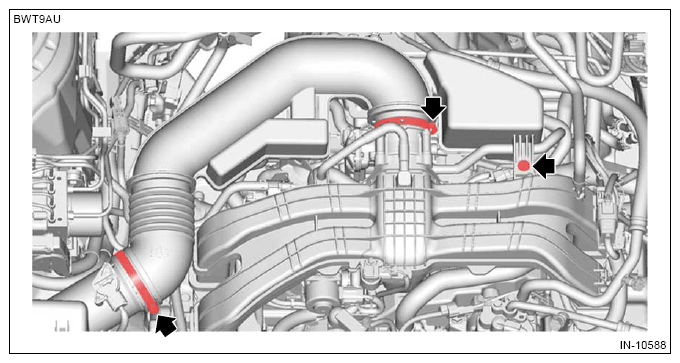

  1. Remove the clip from the air intake boot, and loosen the clamp.
    G13950337Courtesy of SUBARU OF AMERICA, INC.

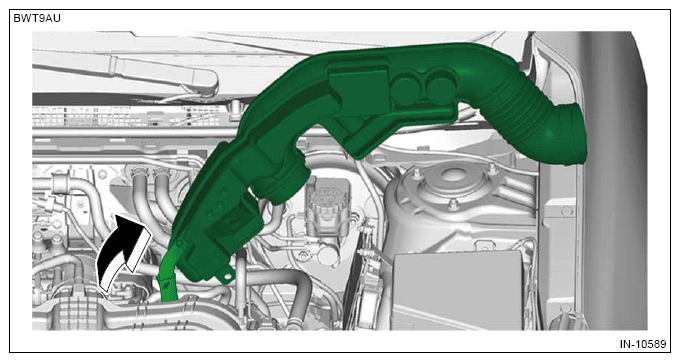

  2. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G13950338Courtesy of SUBARU OF AMERICA, INC.

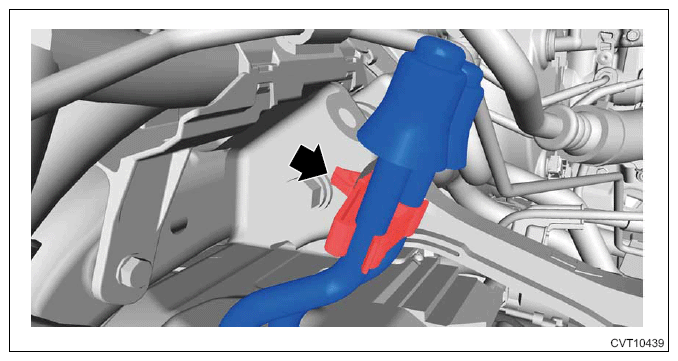

  3. Remove the air breather hose bracket.
    G13950339Courtesy of SUBARU OF AMERICA, INC.

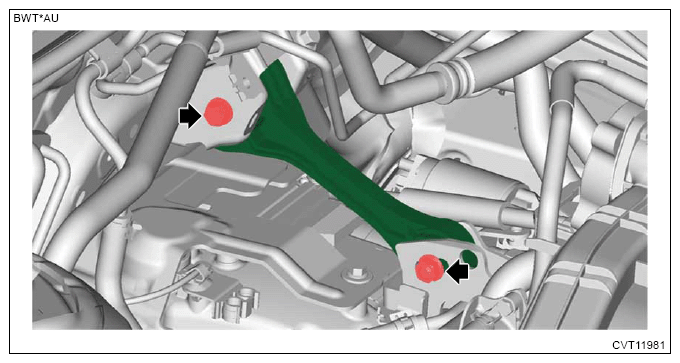

  4. Remove the pitching stopper.
    G13950340Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the pitching stopper bracket.
    NOTE: Perform this procedure only when required.

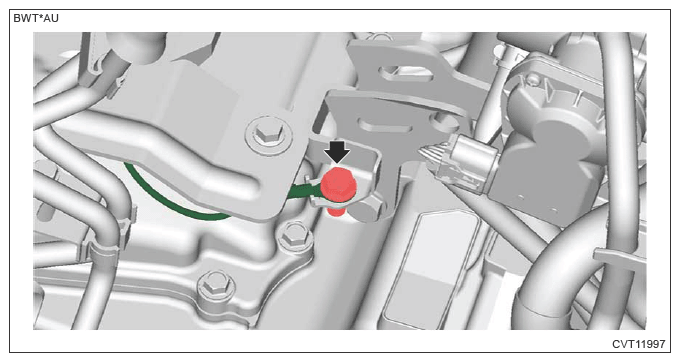

    1. Disconnect the ground cord.
      G13950341Courtesy of SUBARU OF AMERICA, INC.

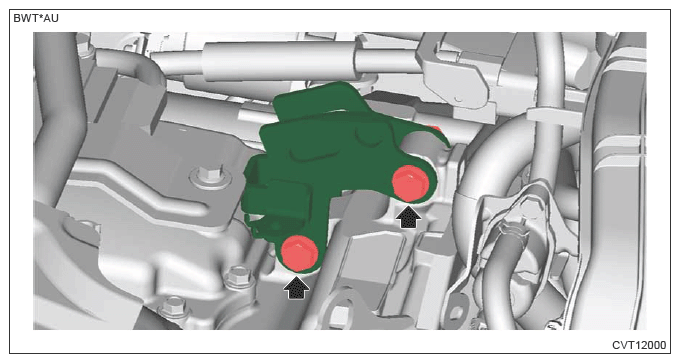

    2. Remove the pitching stopper bracket.
    G13950342Courtesy of SUBARU OF AMERICA, INC.
