Knee Airbag Module: Removal

CAUTION:
  • Refer to "CAUTION" of "General Description" before handling the airbag system components. Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  • Do not allow harness and connectors to interfere or get tangled up with other parts.
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  4. Remove the knee airbag module.
  1. Disconnect the connector of knee airbag module. Ref. to AIRBAG SYSTEM>AIRBAG CONNECTOR>PROCEDURE>KNEE AIRBAG MODULE (DRIVER'S SEAT ONLY), ADAPTIVE FORCE LIMITER AND LAP SEAT BELT PRETENSIONER (PASSENGER'S SEAT ONLY) .
  2. Remove the data link connector.
  3. Remove the nuts, and remove the knee airbag module.

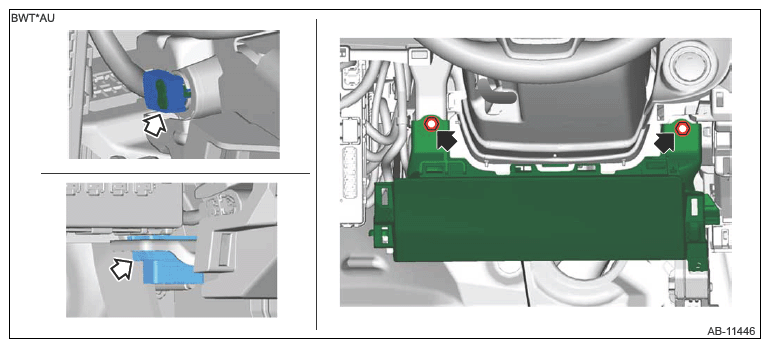

G13951771Courtesy of SUBARU OF AMERICA, INC.

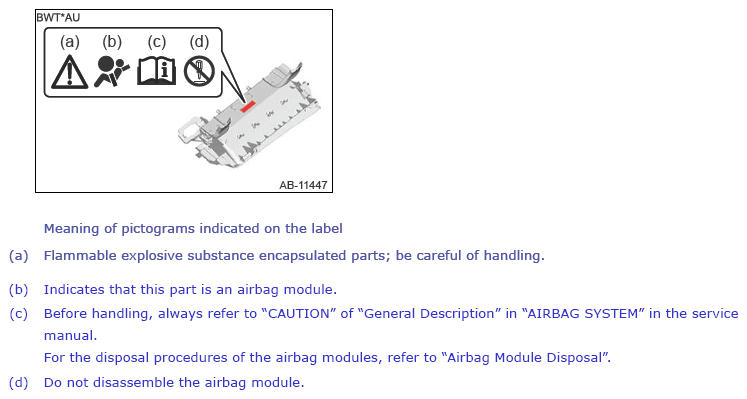

G13951772Courtesy of SUBARU OF AMERICA, INC.
