Exhaust System (2.5L): Muffler: Removal

CAUTION: Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.

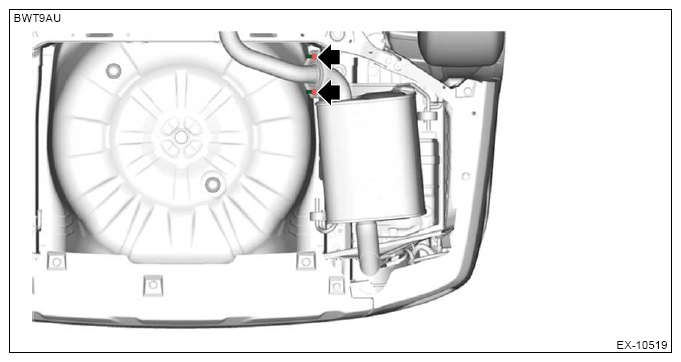

1. Disconnect the rear exhaust pipe and muffler.

   Courtesy of SUBARU OF AMERICA, INC.

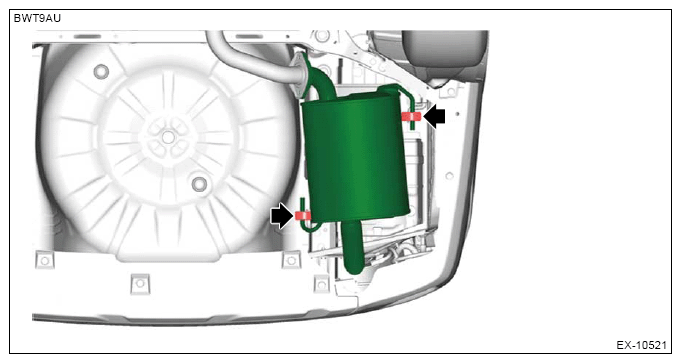

2. Apply a coat of spray type lubricant to the mating area of cushion rubber.
3. Remove the muffler.
   CAUTION: Be careful not to let the muffler contact the rear bumper.

   Courtesy of SUBARU OF AMERICA, INC.

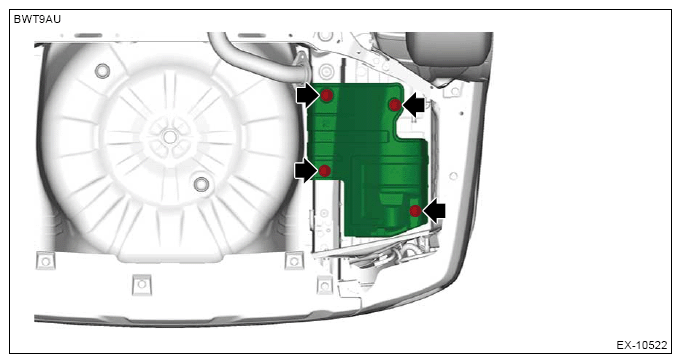

4. Remove the rear exhaust cover.

NOTE: Perform this procedure only when required.

Courtesy of SUBARU OF AMERICA, INC.
