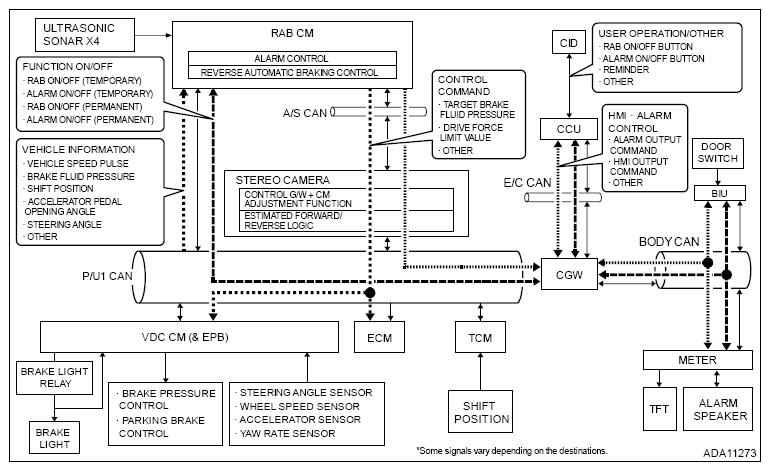

System Block Diagram

The Reverse Automatic Braking is a system to avoid collision or reduce collision damage by informing with sound and operating the brake automatically, when the vehicle may collide with walls or obstacles on the rear during reversing.

Courtesy of SUBARU OF AMERICA, INC.
