Parking Pawl: Removal

  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Assembly>REMOVAL .
  2. Shift the inhibitor switch to "N range".
    NOTE: Align the holes of the shifter arm and inhibitor switch.
  3. Remove the electric oil pump. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Electric Fluid Pump>REMOVAL .
  4. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Extension Case>REMOVAL

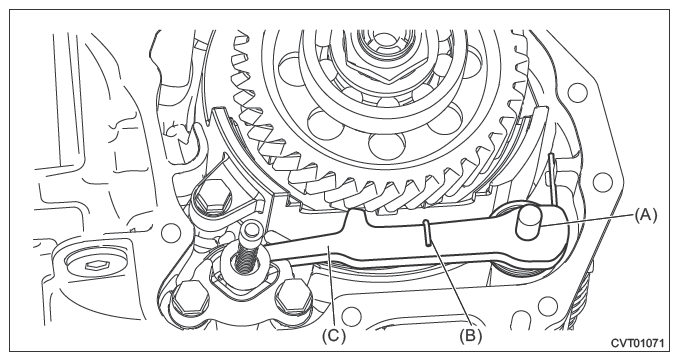

  5. Remove the parking pawl shaft (A), return spring (B) and parking pawl (C).
    G13225832Courtesy of SUBARU OF AMERICA, INC.
