Internal Gear

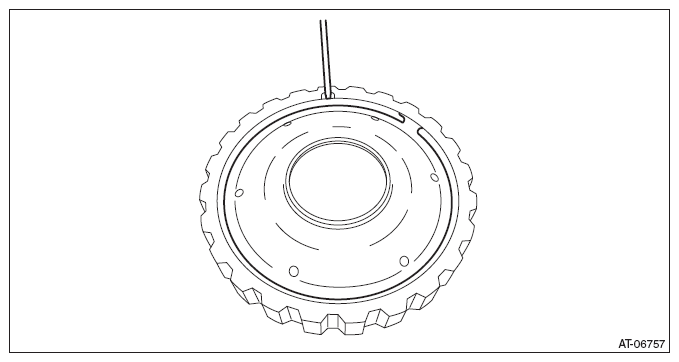

  1. Remove the snap ring.
    G08318068Courtesy of SUBARU OF AMERICA, INC.

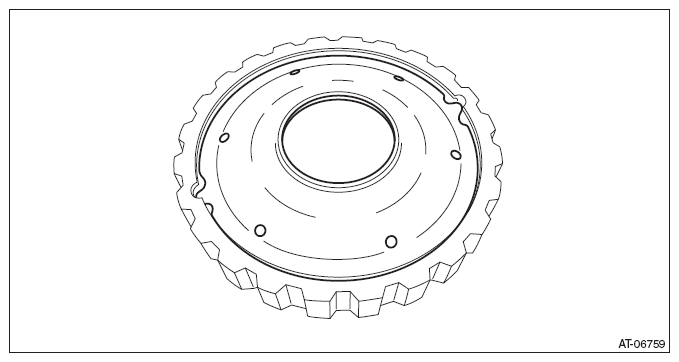

  2. Remove the thrust gear plate.
    G08318069Courtesy of SUBARU OF AMERICA, INC.
