Engine Mechanical System: V-Belt: Installation: V-Belt

  1. Attach the tool to the V-belt tensioner assembly, and rotate the tool clockwise to remove the V-belt as shown in the figure.
    CAUTION:
    • When reusing the V-belt, wipe off dust and water with cloth.
    • Do not use the V-belt if there is any oil, grease or coolant on the belt.
    • Be careful not to rub the V-belt end surface with bare hands; exposed core may cause injury.
    • Wipe off any dust, oil and water on the groove of each pulley with cloth.

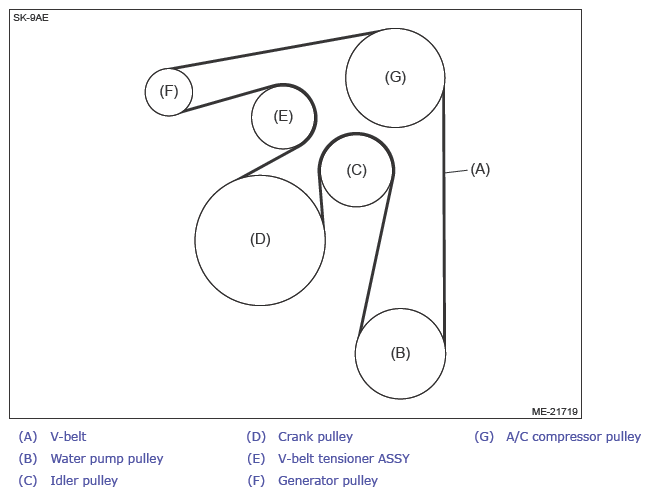

    Fig 1: Engine Drive Belt Routing Diagram
    G13867880Courtesy of SUBARU OF AMERICA, INC.
  2. When working on the vehicle
    NOTE: When working on the vehicle, perform the following steps also.
    1. Install the collector cover. Ref. to INTAKE (INDUCTION) (H4DO)>COLLECTOR COVER>INSTALLATION .
