Rear Suspension System: Stabilizer: Removal: Stabilizer

  1. Release the parking brake.
  2. Using the Subaru Select Monitor, perform the brake maintenance mode. Ref. to PARKING BRAKE>PARKING BRAKE SYSTEM>OPERATION>BRAKE MAINTENANCE MODE .
  3. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  4. Lift up the vehicle, and then remove the rear wheels.
  5. Remove the rear suspension assembly. Ref. to REAR SUSPENSION>Sub Frame>REMOVAL .

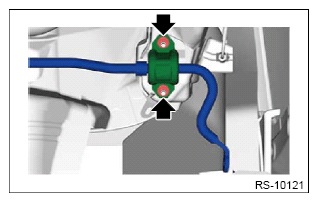

  6. Remove the stabilizer rear.
    G12400673Courtesy of SUBARU OF AMERICA, INC.
