Brake Line
- Check for scratches, swelling, corrosion, traces of fluid leakage on the brake hoses or pipe joints.
- Make sure that brake pipes/hoses do not interfere with adjacent parts and there is no loose connector/clamp during driving.
- Check any trace of fluid leakage, scratches, etc. on master cylinder assembly and hydraulic unit assembly VDC.NOTE:
- When the brake fluid level in the oil reservoir COMPL is lower than specified limit, the brake warning light on the combination meter will illuminate.

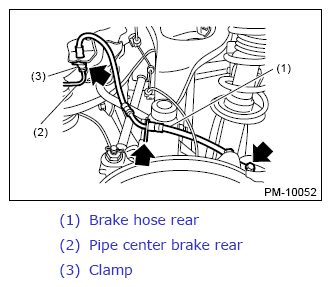

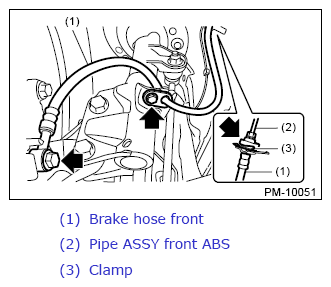

- Visually check the brake hose for damage. (Use a mirror where it is difficult to see)
