Indicator (Model With Gate Shifter)

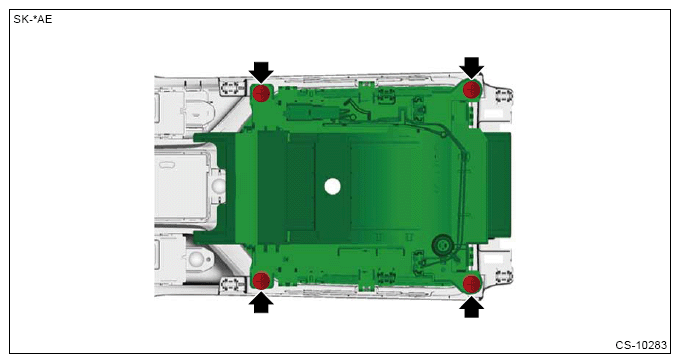

  1. Remove the indicator.
    G13225495Courtesy of SUBARU OF AMERICA, INC.

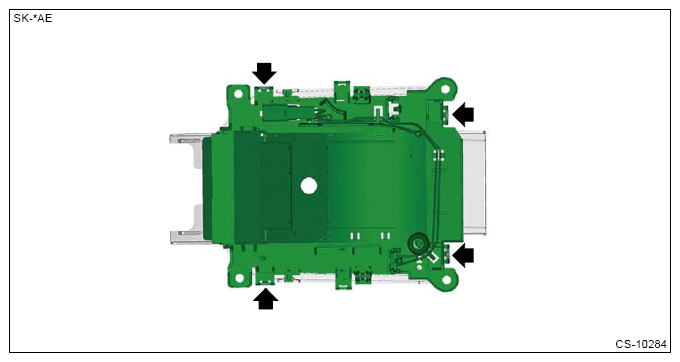

  2. Remove the housing.
    G13225496Courtesy of SUBARU OF AMERICA, INC.

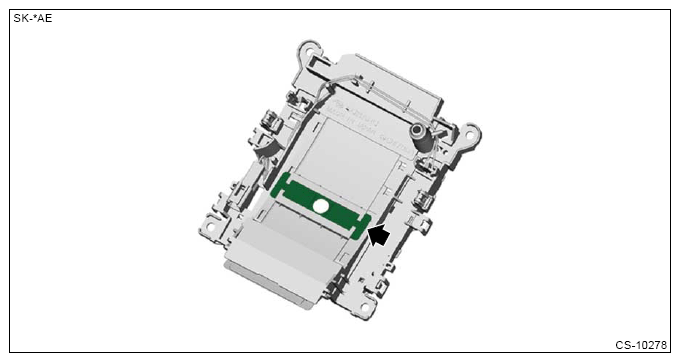

  3. Remove the blind B.
    G13225497Courtesy of SUBARU OF AMERICA, INC.

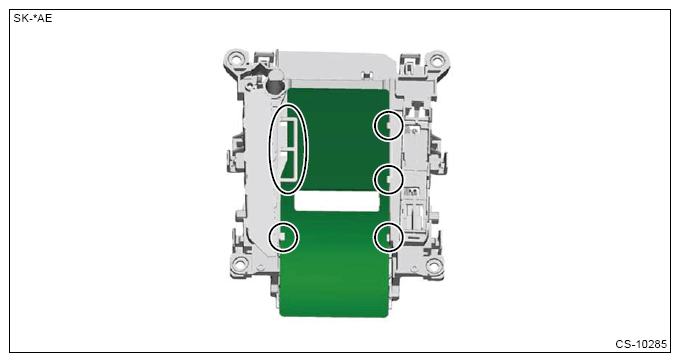

  4. Remove the blind A.
    G13225498Courtesy of SUBARU OF AMERICA, INC.
