Front impact sensor

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  3. Remove the air intake duct (rear). (When removing the sensor RH) Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE DUCT>REMOVAL .
  4. Remove the Front impact sensor.
    1. Remove the bolt, and then remove Front impact sensor.
    2. Disconnect the Front impact sensor connector. Ref. to AIRBAG SYSTEM>Airbag Connector>PROCEDURE>EACH IMPACT SENSOR .

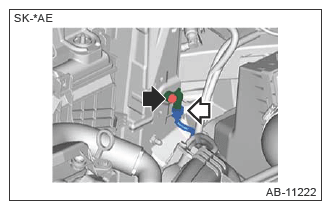

    G13226287Courtesy of SUBARU OF AMERICA, INC.

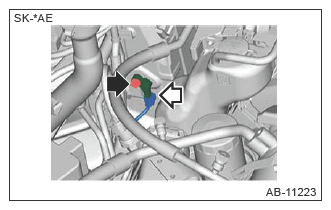

    G13226288Courtesy of SUBARU OF AMERICA, INC.
