DTC P257E/Hood Lock Assembly - Design Change (07-191-21)
Publication date: 2021-03-04Reference number: 07-191-21
DTC P257E/HOOD LOCK ASSEMBLY - DESIGN CHANGE
TECHNICAL SERVICE BULLETIN
| SUBARU: | 2019-21 Forester |
APPLICABILITY
2019-21MY Forester
INTRODUCTION

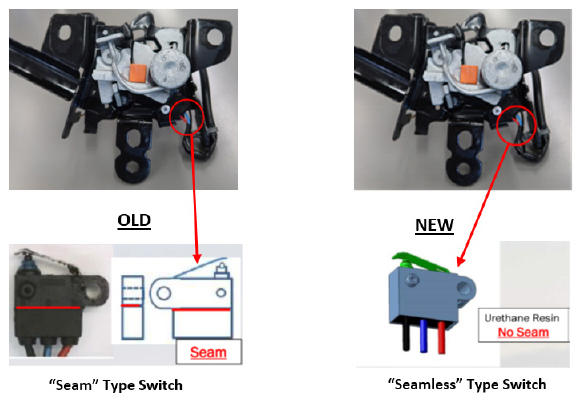

This bulletin announces a design change made to the front hood lock (latch) assembly. The change involves the lock's micro-switch component which is not serviced separately. The previous micro-switch incorporated a seam which may be compromised by prolonged exposure to highly corrosive conditions (e.g. areas with heavy road salt use). If corrosion penetrates into the internal switch contacts, a DTC P257E: ENGINE HOOD SWITCH CIRCUIT LOW may set causing the Auto StartStop system warning lamp to illuminate. In addition, customers may report their remote engine start (RES) will not function. This report may be associated with either the accessory remote version or the STARLINK mobile app version of RES. The new assembly uses a seamless type micro-switch which is impervious to corrosion. OLD and NEW comparison images are supplied below.
PRODUCTION CHANGE INFORMATION
The new hood lock assembly was incorporated into production starting with VIN MH473384.
PART INFORMATION
The new LOCK ASSEMBLY-FRONT HOOD part number is: 57310SJ032.
REMINDER: Always order the most up-to-date replacement parts based on the specific VIN being repaired.
SERVICE PROCEDURE/INFORMATION
REMINDER: Customer satisfaction and retention starts with performing quality repairs.
The service procedures for hood lock assembly replacement and hood adjustment remain unchanged. Always refer to STIS and review the full requirements of the repair being performed. The Service Manual procedures contain important information critical to performing an effective repair the first time, every time.
WARRANTY/CLAIM INFORMATION
For vehicles within the Basic New Car Limited Warranty period or covered by an active Subaru Added Security Gold plan, this repair may be submitted using the following claim information:
| Labor Description | Labor Operation # | Labor Time | Fail Code |
|---|---|---|---|
| HOOD LATCH R&R | A915-111 | 0.3 | SBQ-21 |
IMPORTANT REMINDERS:
- SOA strongly discourages the printing and/or local storage of service information as previously released information and electronic publications may be updated at any time.
- Always check for any open recalls or campaigns anytime a vehicle is in for servicing.
- Always refer to STIS for the latest service information before performing any repairs.
