Diagnostic Method
Judge as NG if the criteria below are met.
JUDGMENT VALUE SPECIFICATION (DIAGNOSIS 1)
| Malfunction Criteria | Threshold Value |
|---|---|
| Output duty to drive circuit | 95% or more |
Time needed for diagnosis:
Engine speed less than 500rpm: 5000ms
Engine speed 500rpm or more: 2000ms
JUDGMENT VALUE SPECIFICATION (DIAGNOSIS 2)
| Malfunction Criteria | Threshold Value |
|---|---|
| Difference between target opening angle and actual opening angle | Within NG range of Details of judgment value |
Time needed for diagnosis:
Engine speed less than 500rpm: 5000ms
Engine speed 500rpm or more: Refer to Details of judgment time .

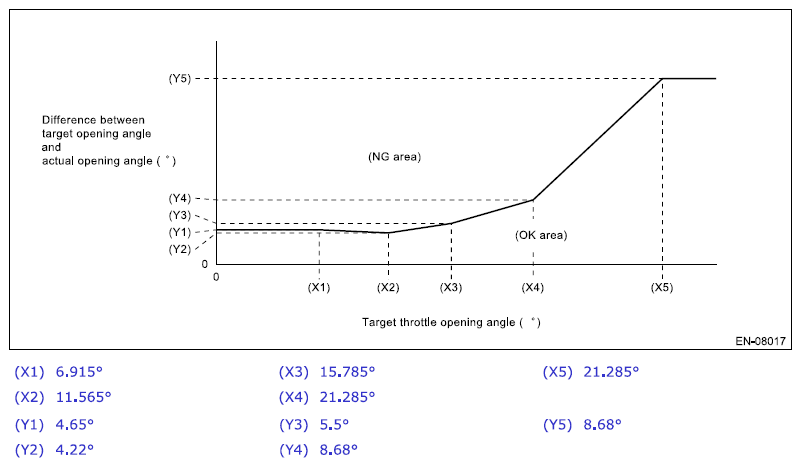

Details of judgment value

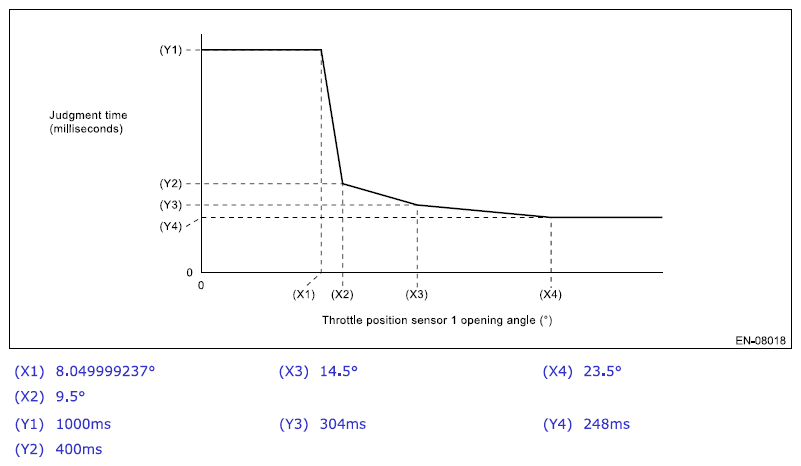

Details of Judgment time
NOTE:
Judgment time when actual opening angle < target opening angle is always 1000 milliseconds.
Malfunction indicator light illumination: Illuminates as soon as a malfunction occurs.
